How to Install a Brake Controller in a 2007 Chevy Silverado 1500
Introduction
Installing a brake controller in your 2007 Chevy Silverado 1500 is an essential upgrade if you plan on towing heavy loads. A brake controller ensures that your trailer's brakes engage simultaneously with your vehicle's brakes, providing a safer towing experience. This guide will walk you through the steps required to set up a brake controller in your Silverado efficiently and correctly.
Gathering Your Tools and Materials
Before beginning the installation, make sure you have all the necessary tools and materials. You will need:
Brake controller unit
Wiring harness compatible with your vehicle
Crimping tool
Wire strippers
Electrical tape
Drill (if needed)
Screwdrivers
40 AMP fuse for underneath hood typically by your auxiliary wires you may have to connect to the studies or bar.
Having these items on hand will make the installation process smoother and more efficient.
Step-by-Step Installation Process
Follow these steps to install your brake controller:
Locating the Factory Brake Controller Connector
The 2007 Chevy Silverado 1500 comes with a factory-installed brake controller connector, usually found under the dashboard on the driver's side. You may need to remove a panel to access it. Once located, connect the wiring harness to the factory connector. This harness will allow you to connect the brake controller to your vehicle's electrical system without cutting any wires.
Mounting the Brake Controller
Next, find a suitable location to mount the brake controller. It should be easily accessible while driving but not obstructive. Common locations include under the dashboard or on the center console. Secure the mount using screws or adhesive as provided in the brake controller kit. Attach the brake controller to the mount.
Wiring the Brake Controller

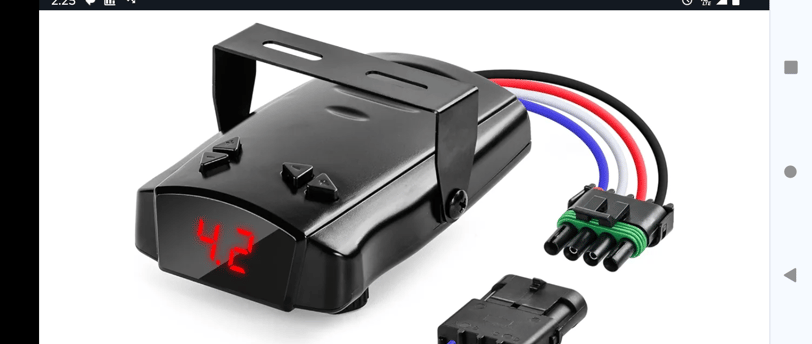

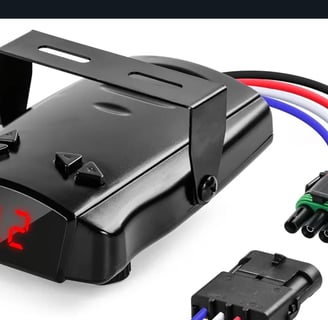

Connect the wiring harness to the brake controller unit. The harness typically includes four wires:
Black wire (power)
White wire (ground)
Blue wire (brake output)
Red wire (brake switch)
Ensure each wire is connected to the corresponding terminal on the brake controller. Use the crimping tool to secure the connections and wrap them with electrical tape to prevent any short circuits.
Also on my Chevy I had to connect two preexisting wires to the fuse box underneath the hood and install a 40 amp fuse
Testing the Brake Controller
After completing the wiring, test the brake controller to ensure it functions correctly. Start your vehicle and press the brake pedal. The brake controller should light up, indicating it’s receiving power. Adjust the settings according to the manufacturer's instructions and test the brakes by towing a light load in a safe area.
Conclusion
Setting up a brake controller in a 2007 Chevy Silverado 1500 is a task that can significantly improve your towing safety. By following these steps, you can ensure that your brake controller is installed correctly and functions as intended, providing you with peace of mind on the road. Always refer to the brake controller's manual for specific instructions and safety precautions.
